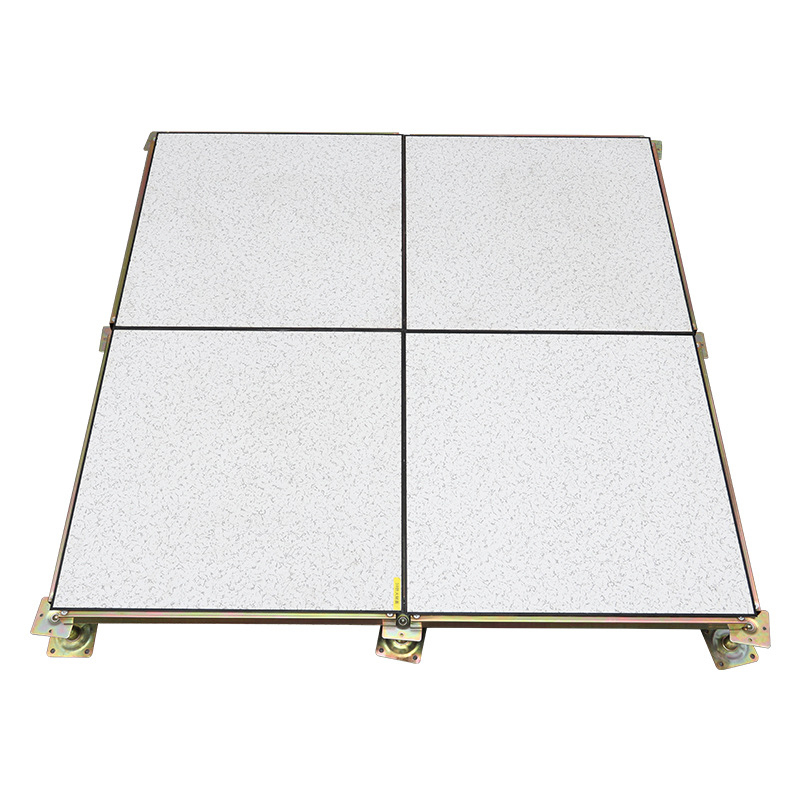

600x600mm hpl raised floor tiles for data center

Anti-static floor is mainly used in Computer room，Microwave communication station room, SPC telephone switching room, Radio control room, TV transmitter control room, Integrated circuit production clean workshop, Electronic instrument manufacturing workshop, Floor of electronic equipment production workshop, Mobile communication room radio and TELEVISION launching center, Traffic and transportation dispatching center, Petrochemical workshop, Anaesthesia room in hospital operating room And other pipeline laying more centralized and dust-proof, anti-static places, large-scale, superhuman scale integrated circuit clean workshop, computer, communication and electronic equipment manufacturing.


Availability:



Inquiry

Product Description

Anti-static floor

Product name: Anti-static floor

Product specification: 600*600*30 (routine) /600*600*35

Product surface: HPL/PVC

Material: steel

Product filling: high strength foamed cement

Thickness of steel plate: 0.5mm up and 0.6mm down

Single weight: 14.5KG

Concentrated load: 200KG

Uniform load: 800KG

Support ratio: 3.3/m²

Cross beam ratio: 5.4/m²

Screw ratio: 10.8 /m²

Special purpose: antistatic

Pressure resistance: 1960N-6675N

Wear resistance: 2000 RPM

Scope of application: computer room, office building, laboratory, computer data center, etc

Anti-static floor

1.Conductive Edge

2.Electrostatic sprayed covering

3.SPCC Cold-Rolled Steel Sheet

4.High-Quality Foam Cement

5.Anti-Corrosive Plastic Powder Coated Layer

6.ST14 Stretching Plate

Anti-static floor 6.1

High quality thickened steel plate: high quality steel plate of sufficient thickness is selected, processed after stamping and welding, and filled with high strength foaming cement, which greatly improves the bearing capacity, flatness and decorative beauty of the floor edge.

Network reinforcement structure: all steel anti-static floor has network reinforcement structure, height integrity at least 10%-20% higher than similar manufacturers.

Non-rusting high bearing capacity: cross reinforcing bars have strong bearing capacity, which is made of 64 honeycomb globes welded by electric welding, with high-quality cold-rolled steel cross reinforcing bars and 12 strengthening points in the middle, so that the floor has stronger non-rusting bearing capacity.

Smooth and beautiful, customizable: a variety of veneers. HPL, PVC and ceramic granite can be used as veneers for steel-based movable floors or for separate paving.
