Aluminum Composite Panel vs Single Aluminum Panel Curtain Walls: Performance Comparison & Metal Fire-Resistant Curtain Wall Construction

In modern architectural curtain wall engineering, aluminum composite panels, single aluminum panels, and metal fire-resistant curtain wall systems are widely utilized due to their respective unique properties. They not only define the aesthetic appearance of a building but also fulfill critical roles regarding safety and functionality. This article presents a comparative analysis of these materials and systems, while also exploring the key principles involved in the construction of metal fire-resistant curtain walls.

I. Characteristics and Applications of Aluminum Composite Panel Curtain Walls

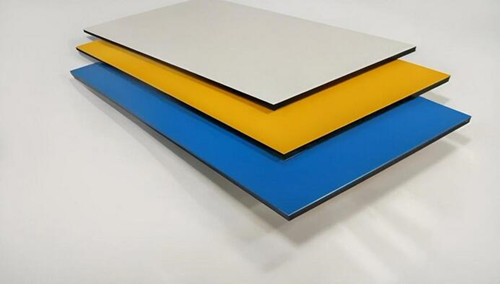

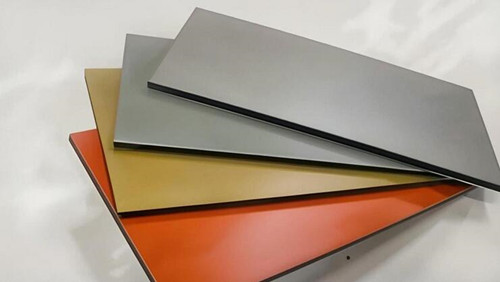

An aluminum composite panel consists of two layers of aluminum sheets sandwiching a core material—typically polyethylene (PE) or a fire-resistant core (such as mineral fibers). Its core advantages lie in its lightweight nature, high flatness, ease of processing and shaping, and relatively low cost. In terms of visual aesthetics, it offers a rich array of color and coating options, thereby satisfying diverse architectural design requirements. Traditional aluminum composite panels with PE cores exhibit shortcomings in fire resistance; when exposed to fire, the core material may combust and emit toxic fumes. Consequently, in high-rise buildings or environments with stringent fire safety regulations, the use of aluminum composite panels featuring higher-grade fire-retardant cores—specifically Class A2 or Class B1—is typically mandated.

II. Advantages and Limitations of Single Aluminum Panel Curtain Walls

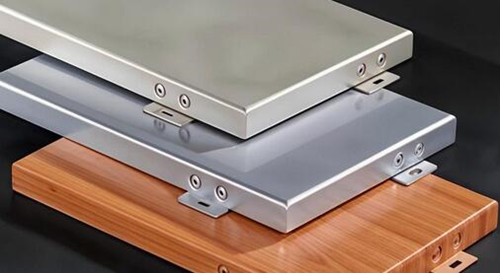

Single aluminum panels are fabricated from high-quality aluminum alloy sheets through sheet metal processing and surface finishing techniques (such as fluorocarbon spray coating). Structurally, they consist of a single metallic material, endowing them with exceptional strength, rigidity, and weather resistance. The significant advantages of single aluminum panel curtain walls include:

1. Superior Fire Resistance: As a non-combustible metal, the material typically meets Class A standards for non-combustible materials.

2. Extreme Formability: They can be processed into a wide variety of complex shapes, making them highly adaptable to the designs of irregular or uniquely shaped building facades.

3. Durability and Ease of Maintenance: The surface coating offers resistance to corrosion and UV radiation, ensuring a long service life while facilitating easy cleaning and maintenance.

Their primary limitations include a higher cost compared to aluminum composite panels, as well as more rigorous requirements for system design—such as the incorporation of expansion joints—to effectively accommodate thermal expansion and contraction.

III. Construction of Metal Fire-Resistant Curtain Wall Systems

A metal fire-resistant curtain wall refers specifically to a curtain wall system designed with the explicit objective of meeting a predetermined fire resistance rating (e.g., 1 hour, 1.5 hours, or 2 hours). It does not refer to a single material, but rather to a comprehensive system that integrates structure, materials, sealing, and filling components. Whether single-skin aluminum panels or fire-resistant aluminum-plastic composite panels are selected as the facing material, the core of the system lies in the fire-resistant design of the curtain wall framework, inter-story firestopping, and joint treatment:

Selection of Fire-Resistant Panels:

Single-skin aluminum panels are often the preferred choice due to their non-combustible nature. If aluminum-plastic composite panels are utilized, they must incorporate fire-resistant core materials classified as Class A2 (non-combustible) or Class B1 (flame-retardant).

Framework and Firestopping:

The vertical mullions and horizontal transoms of the curtain wall are typically constructed from metal (steel or aluminum); the cavities within these members must be tightly sealed at each floor level using non-combustible materials—such as fire-resistant rock wool—to prevent the vertical propagation of fire and smoke.

Fire-Resistant Sealing System:

All panel joints and the perimeters of operable vents must be sealed using elastic fire-resistant sealants or fire-resistant sealing strips to ensure that a certain level of sealing integrity is maintained under fire conditions.

IV. Comprehensive Comparison and Selection Recommendations

When selecting materials for a project, a comprehensive assessment must be made regarding building height, fire-resistance rating requirements, budget constraints, architectural aesthetics, and long-term maintenance costs:

Aluminum-Plastic Composite Panels:

These are better suited for low-to-mid-rise buildings that are cost-sensitive, feature relatively regular geometric designs, and can satisfy local fire safety codes through the use of fire-resistant core materials.

Single-Skin Aluminum Panels:

These represent the preferred solution for high-rise and super-high-rise buildings, public facilities, and projects featuring complex architectural geometries that demand exceptionally high levels of durability and fire safety.

Metal Fire-Resistant Curtain Wall Systems:

This concept represents a specific performance objective; regardless of whether single-skin aluminum or fire-resistant aluminum-plastic panels are chosen, they must be integrated into a complete fire-protection system—one that has undergone rigorous calculation and testing—and be executed with high-quality workmanship to ensure the system achieves its designed fire-resistance rating.

Aluminum-plastic composite panels and single-skin aluminum panels constitute the two primary facing materials in the curtain wall sector, each possessing its own distinct application scenarios. However, the key to constructing a truly safe metal fire-resistant curtain wall lies in incorporating qualified panel materials into a scientifically sound and comprehensive fire-protection system design, supported by superior construction execution. As building safety standards continue to rise and material technologies advance, future curtain wall systems will undoubtedly continue to evolve toward achieving even higher levels of safety while simultaneously upholding aesthetic appeal and functional performance.
